SMX Power

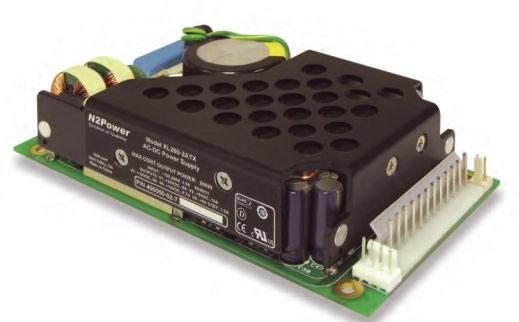

N2 Power XL260-2 ATX
N2 Power XL260-2 ATX
Regular price
$135.00 USD
Regular price
Sale price
$135.00 USD
Unit price
/
per
Couldn't load pickup availability
- Up to 87% efficiency
- High power density
- Remote on/off
- 5V Standby output (1amp)
- Universal AC input
- Active PFC (90 – 264 VAC)
- Inrush current protection
- RoHS compliant
| Part Number | 400050-02-7 | ||||
|---|---|---|---|---|---|
| Output | V1 | V2 |
V3 |
V4 |
V5 |
| Voltage | 24 | 5 | 12 | 12 | 5sb |
| Regulation(%) | ±4 | ±4 | ±5 | ±5 | ±5 |
| maximum Current | 6.0 | 10.0 | 4.0 | 0.7 | 1.0 |
| Ripple & Noise(P-P) | 240 mV | 50 mV | 120 mV | 120 mV | 50 mV |
- Description
- Manufacturer
- Up to 87% efficiency
- High power density
- Remote on/off
- 5V Standby output (1amp)
- Universal AC input
- Active PFC (90 – 264 VAC)
- Inrush current protection
- RoHS compliant
| Part Number | 400050-02-7 | ||||
|---|---|---|---|---|---|
| Output | V1 | V2 |
V3 |
V4 |
V5 |
| Voltage | 24 | 5 | 12 | 12 | 5sb |
| Regulation(%) | ±4 | ±4 | ±5 | ±5 | ±5 |
| maximum Current | 6.0 | 10.0 | 4.0 | 0.7 | 1.0 |
| Ripple & Noise(P-P) | 240 mV | 50 mV | 120 mV | 120 mV | 50 mV |
