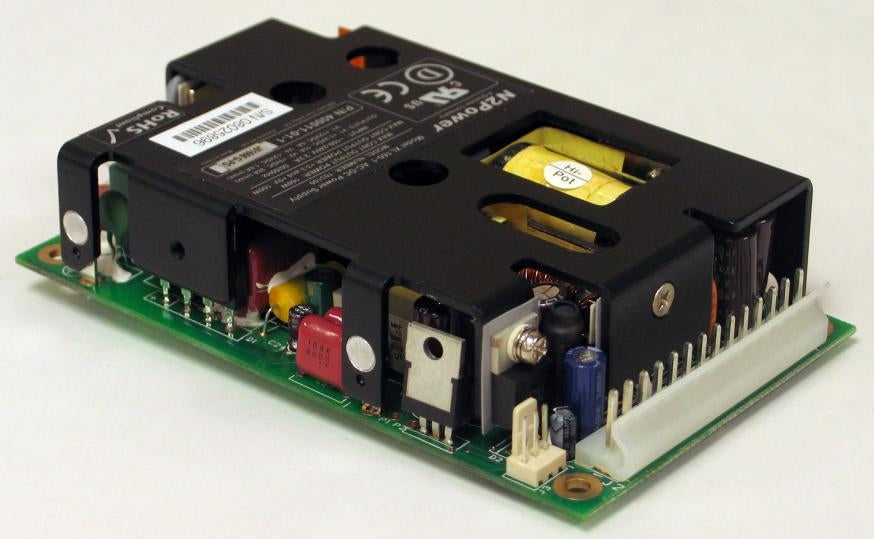

N2 Power XL160-1 S 43D
N2 Power XL160-1 S 43D
Couldn't load pickup availability
All models of the XL160 Series can be used as standalone power supplies while models XL160-05 CS through XL160-56 CS can also be used in redundant or N+1 configurations with up to 4 units connected in parallel. Lettering shown in square brackets indicate optional features or similar models (ex.: [CS] indicates that an active current-sharing feature is available on this model while [ATX] indicates this model is available with the +5Vstandby power option.) See Table 7-1 for a list of available options.
| Part Number | 400011-01-1 |
|---|---|
| Outout | V1 |
| Voltage | +3.3 |
| Regulation(%) | ±3 |
| Minimum (VDC) | 3.201 |
| Nominal (VDC) | 3.300 |
| Maximum (VDC) | 3.399 |
| Remote Sense ( except ATX) | V1/RTN |
- Description
- Manufacturer
All models of the XL160 Series can be used as standalone power supplies while models XL160-05 CS through XL160-56 CS can also be used in redundant or N+1 configurations with up to 4 units connected in parallel. Lettering shown in square brackets indicate optional features or similar models (ex.: [CS] indicates that an active current-sharing feature is available on this model while [ATX] indicates this model is available with the +5Vstandby power option.) See Table 7-1 for a list of available options.
| Part Number | 400011-01-1 |
|---|---|
| Outout | V1 |
| Voltage | +3.3 |
| Regulation(%) | ±3 |
| Minimum (VDC) | 3.201 |
| Nominal (VDC) | 3.300 |
| Maximum (VDC) | 3.399 |
| Remote Sense ( except ATX) | V1/RTN |
